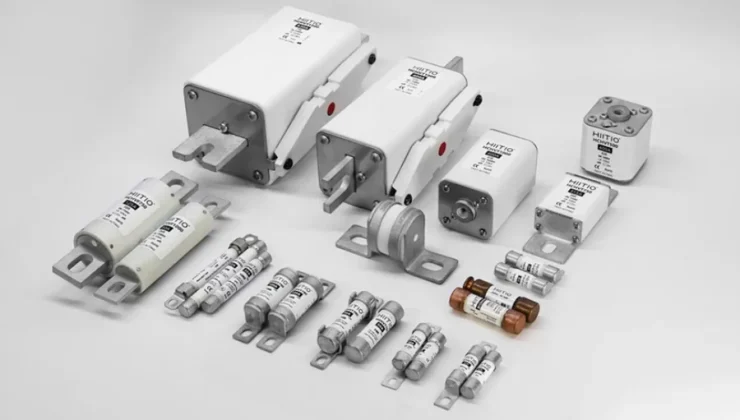

The Science of Failure Protection: A Simplified Guide to Semiconductor Fuses

In the world of modern electronics, where devices operate at lightning-fast speeds and handle increasingly complex tasks, protection against electrical failures has never been more critical. Every piece of electronic equipment—from industrial motor drives to renewable energy systems—relies on sophisticated protection mechanisms to prevent catastrophic damage. At the heart of this protection strategy lies a specialized component that most people have never heard of, yet it safeguards billions of dollars worth of equipment every day: the semiconductor fuse. Understanding how these remarkable devices work reveals a fascinating intersection of physics, materials science, and precision engineering.

Unlike the simple fuses found in household electrical panels, semiconductor fuses for high-performance applications represent a quantum leap in protection technology. These devices are specifically engineered to protect sensitive semiconductor components like thyristors, diodes, and IGBTs (Insulated Gate Bipolar Transistors) that power everything from electric vehicles to solar inverters. The challenge they address is unique: semiconductors can be destroyed in microseconds when subjected to overcurrent conditions, requiring protection that responds faster than traditional fuses could ever achieve.

To truly appreciate how semiconductor fuses function and their critical role in modern electrical systems, we need to understand the science behind their operation. When an electrical fault occurs, current can skyrocket to dangerous levels in milliseconds. Semiconductor devices are particularly vulnerable because their silicon-based structure cannot dissipate heat quickly enough during these events. A semiconductor fuse acts as an ultra-fast circuit breaker, interrupting the fault current before the protected device reaches its thermal destruction point—typically within 1 to 5 milliseconds.

The Physics Behind Ultra-Fast Protection:

The secret to semiconductor fuse performance lies in their specialized construction and the materials used. Traditional fuses rely on a simple principle: a metal element melts when too much current passes through it. Semiconductor fuses take this concept to an entirely different level of sophistication.

Key Design Elements:

• Silver Ribbon Elements: Most high-performance semiconductor fuses use pure silver ribbons with precisely engineered notches or perforations. Silver’s excellent conductivity minimizes energy loss during normal operation, while the notches create controlled weak points that vaporize rapidly under fault conditions.


• Sand Filling (Silica Arc Quenching Medium): The fuse body is packed with highly pure quartz sand. When the silver element vaporizes during a fault, it creates an electric arc—essentially a plasma channel that continues conducting electricity. The sand absorbs the arc energy and helps extinguish it almost instantly, preventing the arc from re-establishing the circuit.


• Ceramic Body Construction: High-grade ceramic housing provides mechanical strength, thermal stability, and electrical insulation. The ceramic must withstand the tremendous internal pressures generated when the element vaporizes.


• Striker Pin Mechanism: Many semiconductor fuses include a mechanical striker pin that physically ejects when the fuse operates, providing a visible indication of fuse status and potentially triggering external safety mechanisms.


Understanding the I²t Rating: The Mathematics of Protection:

One of the most important specifications for semiconductor fuses is the I²t value (pronounced “I-squared-t”), which represents the thermal energy the fuse allows to pass through before clearing a fault. This value is measured in ampere-squared seconds (A²s).

The I²t rating must be carefully coordinated with the protected semiconductor device. If the fuse’s I²t is too high, the semiconductor will be damaged before the fuse operates. If it’s too low, nuisance tripping occurs during normal switching operations or brief overload conditions. This precise matching is what separates professional-grade protection design from amateur approaches.

Voltage Ratings and Breaking Capacity:

Semiconductor fuses must handle two distinct voltage challenges. The first is the rated voltage—the maximum voltage at which the fuse can safely operate under normal conditions. The second, and more critical, is the breaking capacity voltage—the maximum voltage across the fuse terminals that it can safely interrupt when clearing a fault.

When a semiconductor fuse interrupts high current, the rapid arc extinction creates a voltage spike across the fuse. Modern semiconductor fuses can handle breaking voltages of 1,000V to 1,500V or higher, protecting systems that operate at nominal voltages of 690V or below. This breaking capacity is essential in industrial applications where inductive loads can generate substantial voltage transients.

Practical Applications Across Industries:

Renewable Energy Systems: Solar inverters and wind turbine converters rely on semiconductor fuses to protect their power conversion stages. A single fault in an unprotected inverter can cascade through an entire solar array, potentially destroying hundreds of thousands of dollars in equipment.

Industrial Motor Drives: Variable frequency drives (VFDs) that control industrial motors use semiconductor fuses to protect their rectifier and inverter sections. These systems handle enormous power levels—some exceeding megawatts—making proper protection absolutely essential.

Electric Vehicle Charging: Fast-charging stations for electric vehicles use semiconductor fuses to protect their high-power conversion electronics. As charging speeds increase, the protection requirements become even more demanding.

Railway Traction Systems: Electric trains and trams depend on semiconductor converters for propulsion control. Semiconductor fuses in these applications must handle the unique challenges of mobile platforms, including vibration, temperature extremes, and highly variable loads.

Selection Criteria: Matching Fuse to Application:

Choosing the right semiconductor fuse requires careful consideration of multiple factors:

• Continuous Current Rating: Must exceed the normal operating current with appropriate derating for ambient temperature

• I²t Coordination: Must be lower than the protected semiconductor’s maximum allowable I²t

• Voltage Rating: Must match or exceed the system voltage with adequate margin for transients

• Physical Size: Must fit the available space while providing adequate thermal management

• Certification Requirements: Must meet applicable standards (IEC, UL, etc.) for the specific application

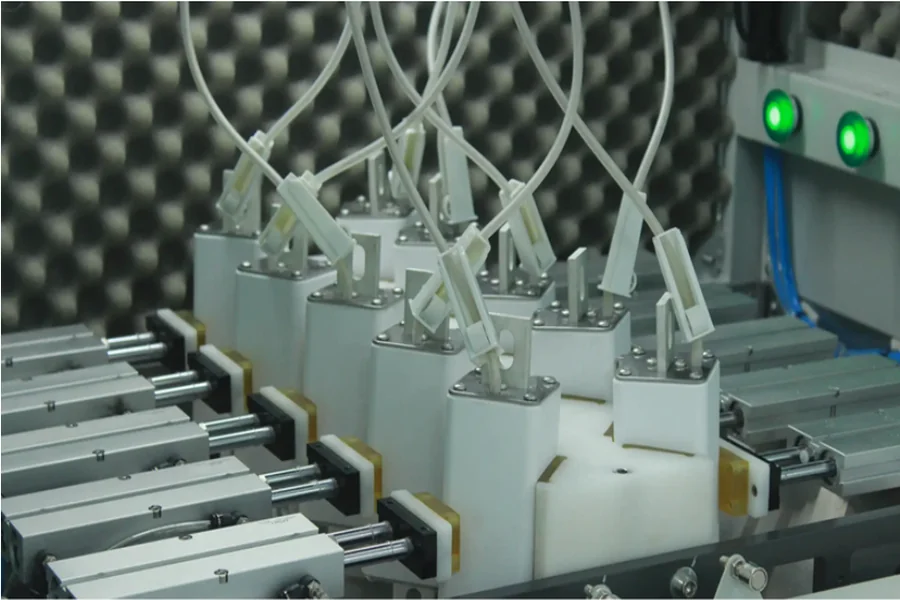

The Future of Semiconductor Protection:

As power electronics continue evolving toward higher switching frequencies, greater power densities, and wider bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN), semiconductor fuse technology must advance in parallel. Modern research focuses on even faster response times, reduced size, improved I²t precision, and enhanced diagnostic capabilities.

Some next-generation fuses incorporate electronic monitoring systems that provide real-time status information, predictive maintenance alerts, and integration with digital control systems. This fusion of passive protection and active intelligence represents the future direction of the field.

Understanding semiconductor fuses reveals the sophisticated engineering that protects our increasingly electrified world. These unassuming components embody decades of materials science research, precision manufacturing, and application expertise. For engineers designing power electronic systems, proper fuse selection and application isn’t just good practice—it’s the difference between reliable operation and catastrophic failure. As our dependence on electronic systems grows, so too does the importance of the humble semiconductor fuse standing guard against electrical disasters.
